Magnetic LED Light Bar Kit for Under Shelf Lighting

  • Make your shelving displays stand out with under shelf LED lighting
  • Our Magnetic LED Light Bar showcases your products with a soft glow
  • Magnetic under cabinet lighting is easy to install - no fixings needed
  • UK mainland delivery from £6.95 - free on orders over £125 (ex. VAT)
  • Get it by Thursday 13th May if you order by 5pm using Express Delivery

Description

What are the benefits of using a Magnetic LED Light Bar?

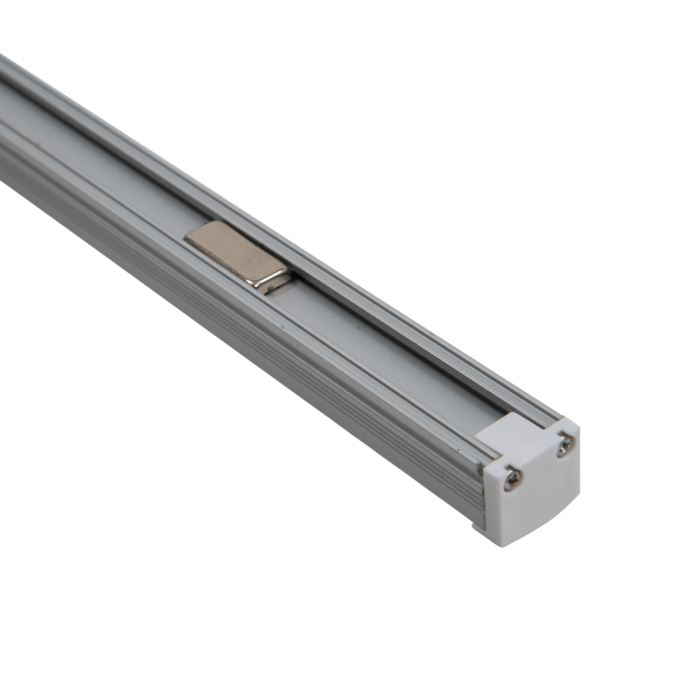

Shine a spotlight on key items and take your displays to the next level with our professional LED lighting for shelves. Our Magnetic LED Light Bar Kits attach to compatible shelves using the in-built magnets in the aluminium casing surrounding the LED bars, meaning that they can be installed straight away - no extra fixings are required.

If your shelves will not support magnetic fixings, then we also have an Adhesive LED Light Bar Kit which is suitable for use on any shelf.

What is included in each magnetic LED shelf lighting system kit?

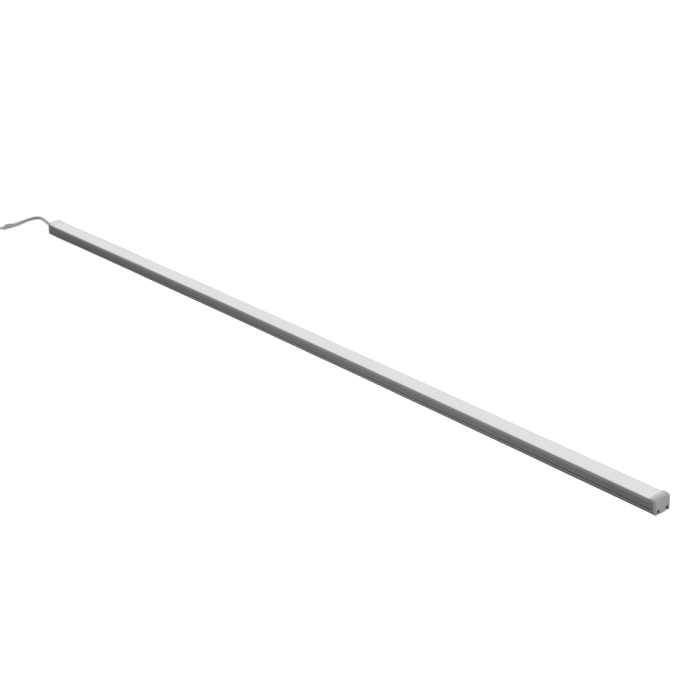

Each kit comes with a maximum of four magnetic LED light bars, one magnetic power track and one 96W power supply adaptor. The light bars are available in a choice of two lengths: 960mm and 1160mm, while the power track is also available in a choice of two lengths: 1000mm and 1500mm lengths.

You can build upon your LED lighting kits by adding additional light bars, power tracks and power supply adaptors if you require a larger display. These individual components or bespoke kits can be requested through our sales team.

How do I set up the under shelf LED lighting?

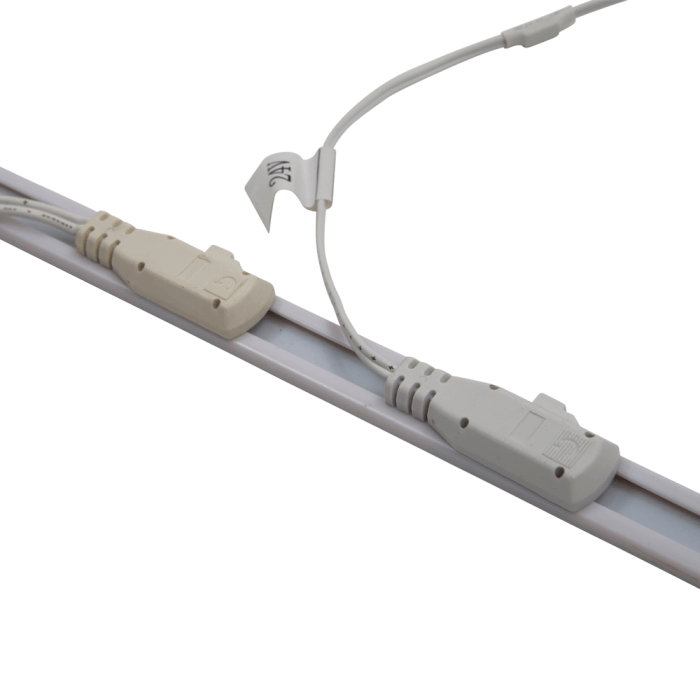

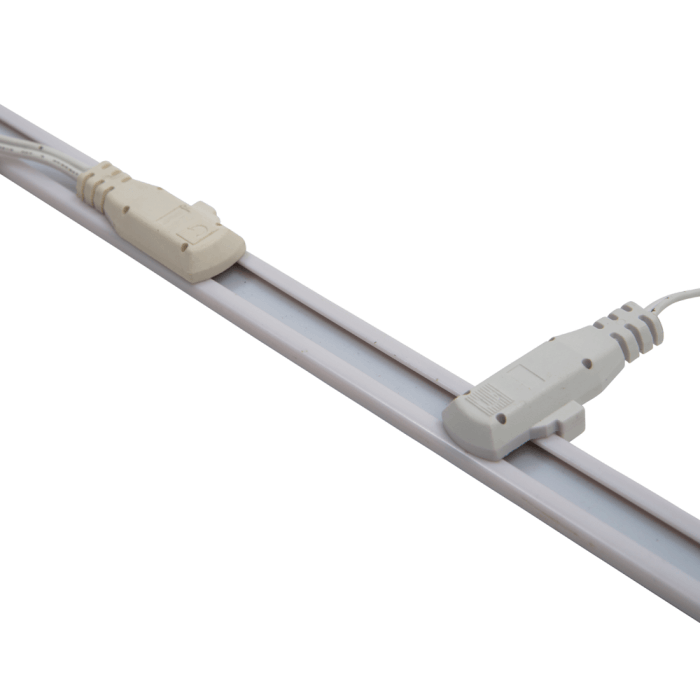

It couldn't be easier to install the LED light bars, as they simply attach to magnetic shelves using the in-built magnets that sit on the back of the bars. No extra fixings are required. To provide power to the light bars, you need to clip each bar's cable to the power track, clip your power cable adaptor to the power track, then plug the power cable into a mains socket. The power track is the conductor for the electricity and has a magnetic backing which allows it to attach to your shelving as well.

Specifications

Light bar length 960mm 1160mm
Light bar width 16mm 16mm
Light output 890 lumen 1120 lumen
Shelf fixing method Magnetic Magnetic
Number of strips available Up to 4 per pack Up to 4 per pack
Wattage 10.8W 14W
Power supply Mains powered Mains powered
Voltage DC24V DC24V
LED colour White White
Colour temperatures 3000-6500K 3000-6500K
LED type 2835-120 LEDS/M 2835-120LEDS/M
LED colour White White
Colour rendition High - up to 90 CRI High - up to 90 CRI
Cable management system Magnetic Magnetic

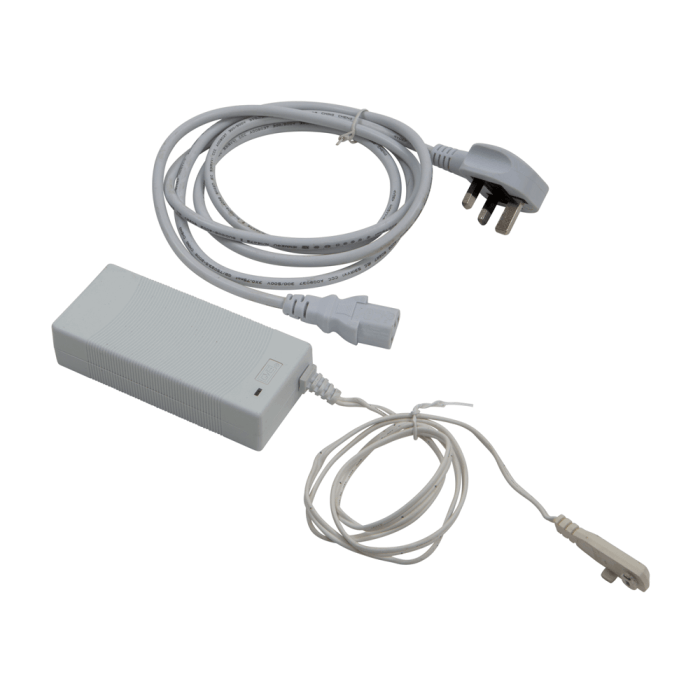

Power supply adapter

Wattage 96 Watt
Max number of 960mm Magnetic LED Bars supported 7
Max number of 1160mm Magnetic LED Bars supported 5
Voltage 24V, 4A
Cable length 2m
Certification UL/CE

Code: SUL

From: £81.02
(from £ per unit)

ex. VAT

Quantity Discount Each
1+ -
£81.02
