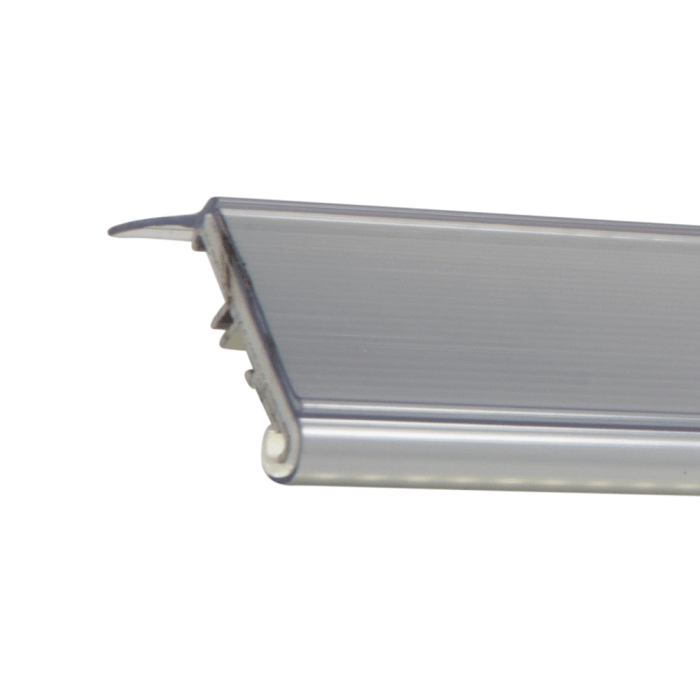

Illuminated Ticket Strip Kit

  • Enhance your shelf edges with LED data strips for shelves
  • Dual purpose Illuminated Ticket Strips with ticket and shelf lighting
  • Available in various easy-to-install configurations and lengths
  • UK mainland delivery from £9.50 - free on orders over £150 (ex. VAT)
  • Get it by Friday 27th May if you order by 5pm using Express Delivery


Why use LED shelf edge strips?

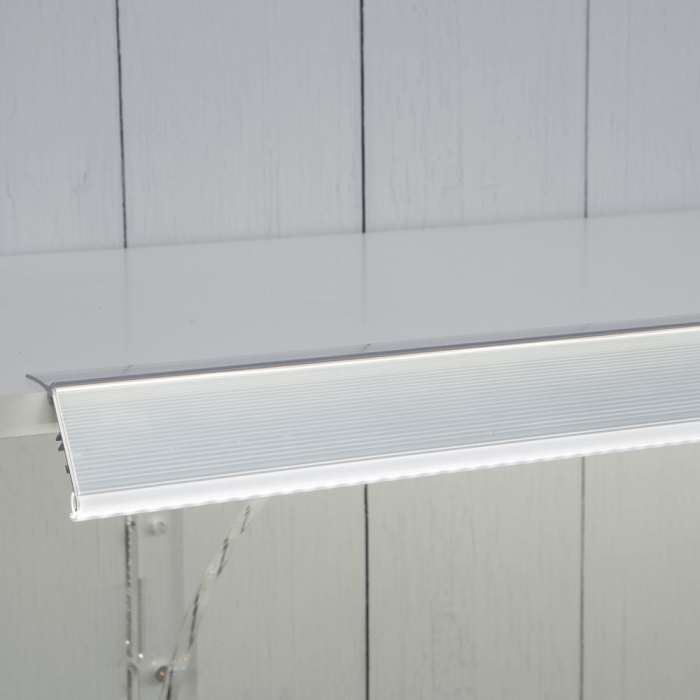

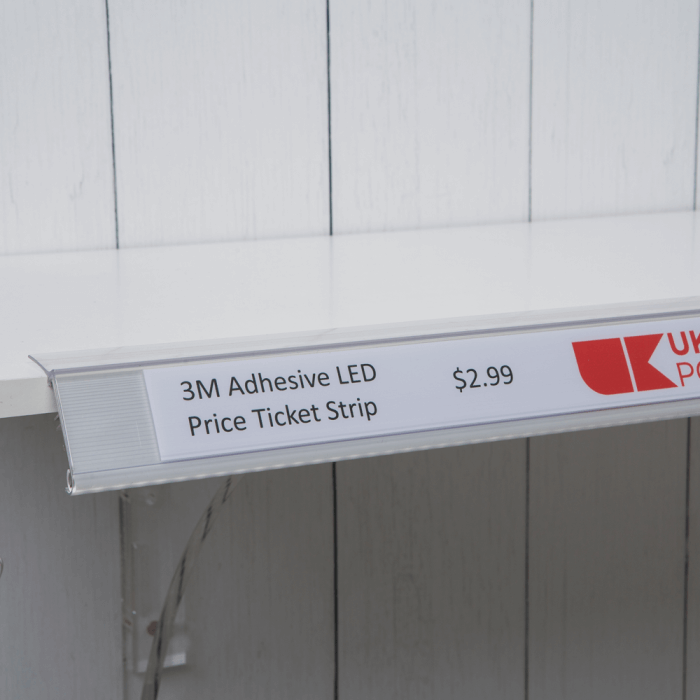

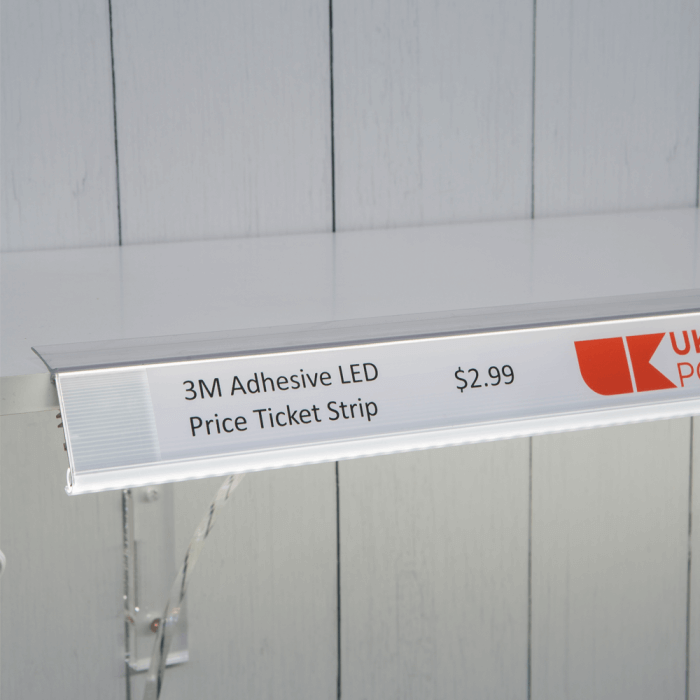

Illuminate both your shelf labels and the shelf below with these cleverly designed LED data strips for shelves. Highlighting products and prices using an illuminated ticket strip gives your business a modern, high-quality feel which creates an eye-catching retail shelving display.

How is each Illuminated Ticket Strip Kit supplied?

You can choose various combinations of these LED data strips for shelves to suit your shelving requirements. Each pack comes with a maximum of four Illuminated Ticket Strips (in 1m or 1.2m lengths), one power track (in a choice of 500mm, 1000mm or 1500mm lengths) and one 96W power adaptor.

How does the Illuminated Ticket Strip attach to my shelf edges?

Our LED shelf edge strips are supplied with two strong adhesive strips on the back, which will attach each illuminated ticket strip securely to your shelving. The LED ticket strip will accept data strips up to 3.5cm in height. Both the power adaptor cable and ticket strip cables clip into the power track to form the lighting kit.

How do I operate the LED shelf edge strips?

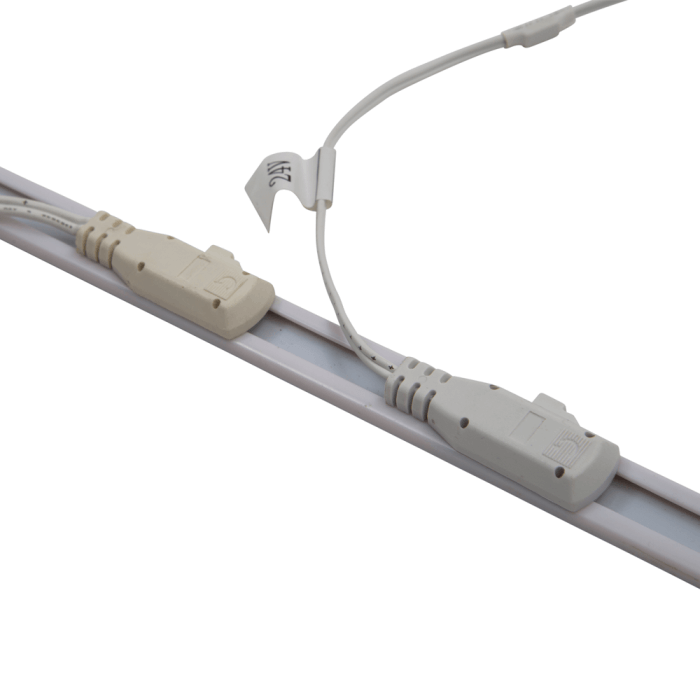

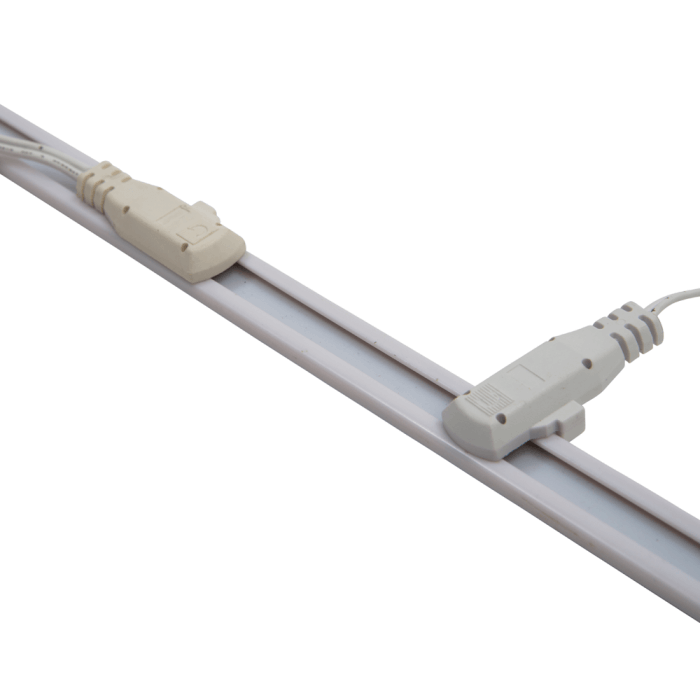

The illuminated ticket strip uses mains-powered wiring which can be discreetly fixed to metal shelving using a magnetic track, or alternatively you can fix them using adhesive. The wires fix into the magnetic track using a convenient clip-lock mechanism to reassure you that the connections will not fall out. Additionally, the wires are fitted with tiny magnets to help them adhere discreetly along metal shelving units.

You can build upon your Illuminated Ticket Strip Kit by adding additional ticket strips, power tracks and power supply adaptors if you require a larger display. These individual components or bespoke kits can be requested through our sales team.


Lengths available 1m or 1.2m (select from dropdown menu)
Ticket strip configurations 1 - 4 strips (to suit 1 - 4 shelves)
Material Extruded anodized aluminium, PMMA, PVC

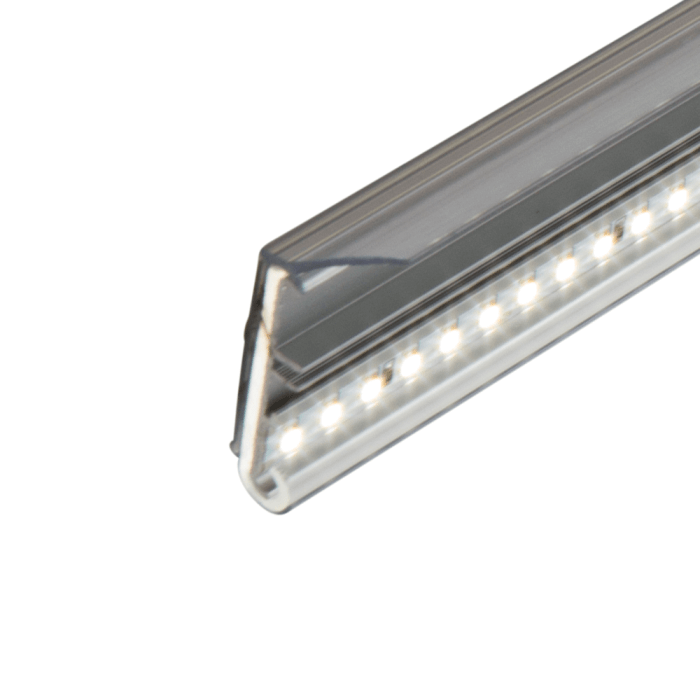

Illumination type LEDs (SMD 2835, 120 per metre)
Beam angle 30° front side up & 30° back side down
Colour temperature 4000-4500K (neutral white)
Fixing type Strong adhesive strips
Power supply Mains powered
Voltage 24 VDC
Accepts data strip height 3.5cm
Cable fixing Magnetic cable fixing
IP rating IP20
Certifications CE marked and RoHS compliant
Cable length 1m with 2pcs magnets

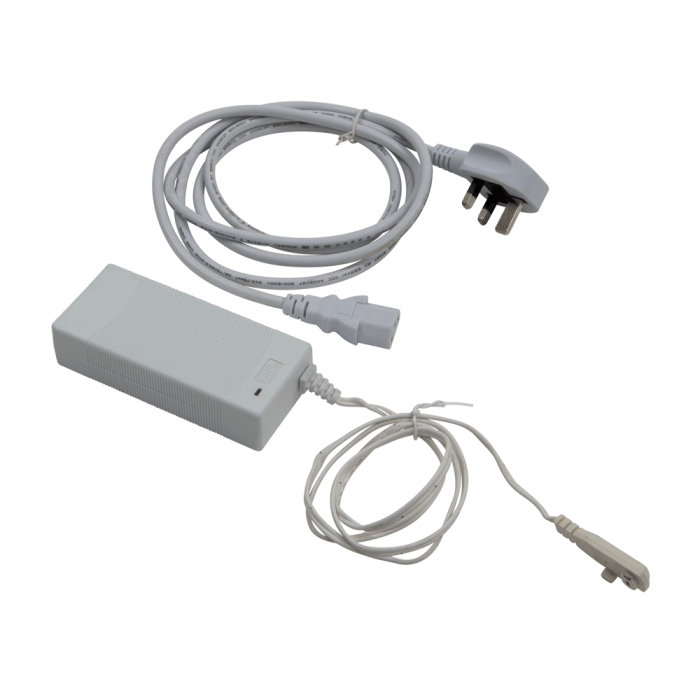

Power supply adapter

Wattage 96 Watt
Max number of 1m Illuminated Ticket Strips supported 7
Max number of 1.2m Illuminated Ticket Strips supported 6
Voltage 24V, 4A
Cable length 2m
Certification UL/CE
