Self Adhesive LED Strip Kit for Under Shelf Lighting

  • Self Adhesive LED Strip for under shelf lighting displays
  • LED shelf lights create a soft white glow around key products
  • Retail display shelf lighting draws attention from passing customers
  • UK mainland delivery from £9.50 - free on orders over £150 (ex. VAT)
  • Get it by Monday 22nd Aug if you order by 5pm using Express Delivery


What is a Self Adhesive LED Strip?

Create attractive shelf displays within your retail stores with these Self Adhesive LED Strip Lights for shelves. They are a type of task lighting bar that fixes to the underside or back of your shelf to provide a soft glow of atmospheric warm white lighting around your products or signage.

Why is retail display shelf lighting so important?

The proper lighting solutions around your product can transform it from just another product on your shelves, into a key item that cannot be missed. Light has the effect of drawing the eye, so a soft glow above or below your key products has the effect of drawing the attention of passing customers.

What is included in each of the LED light kits?

Each led shelf lighting system comes with a maximum of four Self Adhesive LED Light Strips, one power track (in a choice of 50cm, 100cm or 150cm lengths) and one 96W power adaptor. We also have a Magnetic LED Light Bar Kit available.

How do I install the LED shelf lights?

It is easy to install the under shelf led lighting strips, as everything you need to fit them is provided. Simply use the adhesive backing of the light bars to directly fix the bars to your shelving.

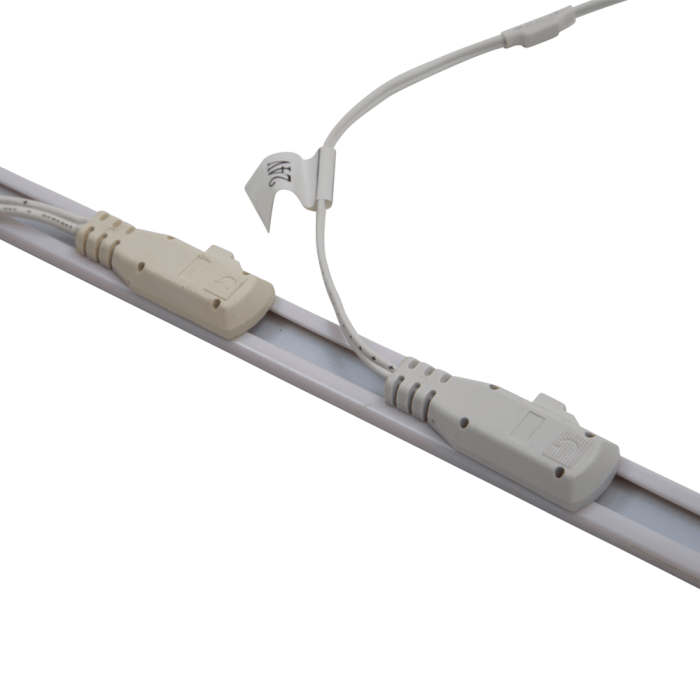

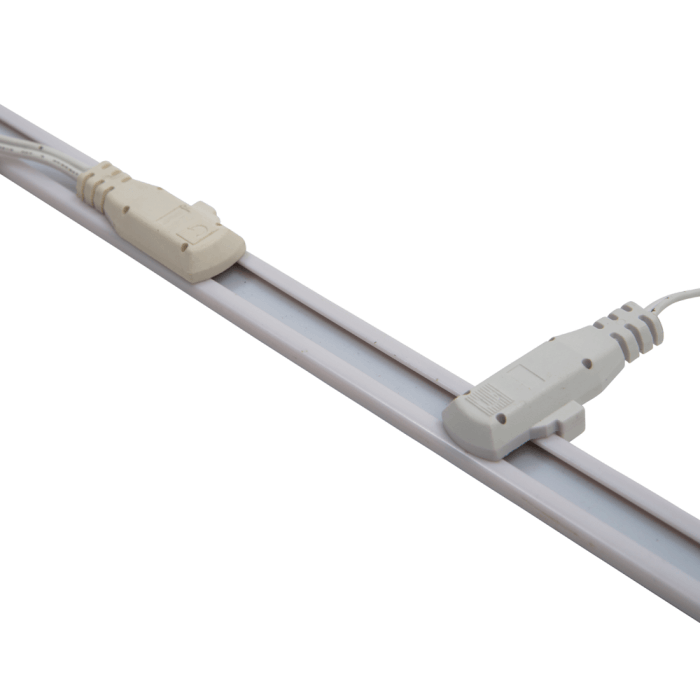

To power your shelf or cabinet lighting, you will need to clip your light bar cables into the power track, clip the power adaptor cable into the power track, then plug the other end of the cable into the mains. The power track has a magnetic backing, allowing you to secure it to your shelves alongside your light bars if your shelf supports magnetic fixings.

You can build upon your retail display shelf lighting kits by adding additional light bars, power tracks and power supply adaptors if you require a larger display. These individual components or bespoke kits can be requested through our sales team.


Light bar length 97cm 117cm
Light bar width 7.5mm 7.5mm
Light output 780 lumen 880 lumen
Shelf fixing method Adhesive Adhesive
Number of strips available Up to 4 per pack Up to 4 per pack
Wattage 9.3W 11.04W
Power supply Mains powered Mains powered
Voltage DC24V DC24V
LED colour White White
Colour temperatures 3000-6500K 3000-6500K
LED type 2835-120 LEDS/M 2835-120LEDS/M
Colour rendition High - up to 90 CRI High - up to 90 CRI

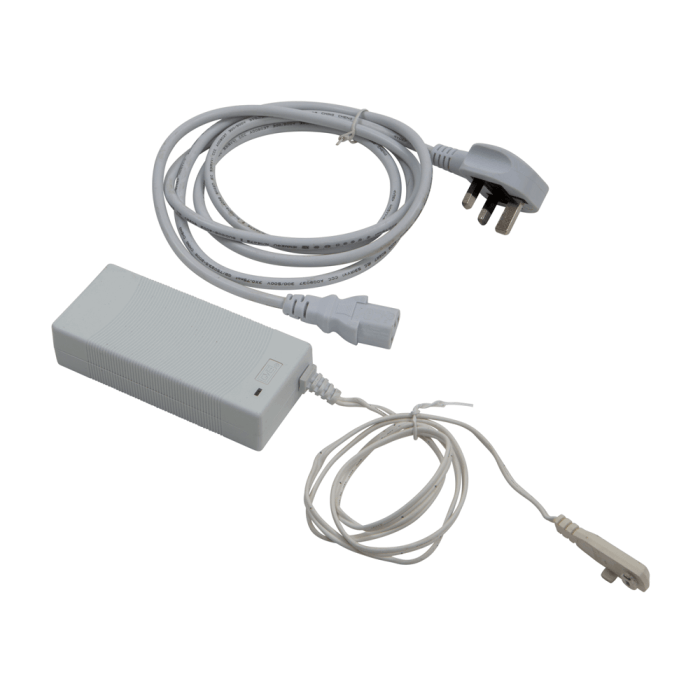

Power supply adapter
Wattage 96 Watt
Max number of 97cm Adhesive LED Bars supported 9
Max number of 117cm Adhesive LED Bars supported 6
Voltage 24V, 4A
Cable length 2m
Certification UL/CE

Code: SUL1

From: £70.10
(from £ per unit)

ex. VAT

Quantity Discount Each
1+ -


Fast delivery, easy returns

Standard Delivery Get it by Wednesday 24th Aug (or sooner) £9.50
Express Delivery Get it Monday 22nd Aug £12.00
Premium Delivery Choose the right delivery date and time for you
Click and Collect from Stockport Order before 2:30pm for same day collection
Available with plain packaging for re-sellers Send straight to your client from the checkout
14 day returns Return unused products for your money back
View full delivery information
